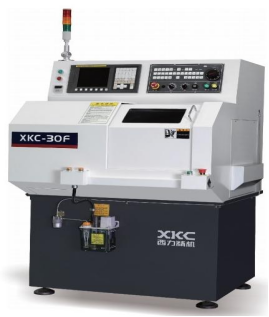

20F/30F/201F/301F
SUPER - SMALL HIGH PRECISION CNC LATHES
High Accuracy Spindle
The spindle runs in Japan NSK super precision angular contact ball bearings, and ensures high rigidity and lasting accuracy.Runout isles than 2μm.
Efficient Machining
Max. speed of spindle is6000 rev/min. Rapid traverse rate of x and Y axes is up to 20m/min. Auto parts feeder and Workpiecetransfer can be equipped to fulfil fast and efficient automationproduction.
Accurate Feeding
Each feeding axis is driven by servo motors through Japan NSK、THK precision ball screws.Machining accuracy isensured and along time accuracy is remained Repeatabilityis less than±1μm.
Comb Type Tool Rest
The unique design of comb type tool rest gives minimumrepeatability error during tool change.It is fast,precise andconsiderably time saving.
項目ITEM | 20F/30F | 201F/301F | |
加工能力 Capacity | 床身上最大回轉直徑 Swing over bed | φ240mm | φ240mm |
刀板底座上回轉直徑 Swing over cross slide | φ120mm | φ120mm | |
最大加工直徑 Max. machining diameter | φ100mm | φ100mm | |
最大加工長度 Max. machining length | 100mm | 100mm | |
主軸 Spindle | 回轉速度 Spindle speed | Max.6000r/min | Max.6000r/min |
主軸通孔直徑 Through holediameter | 20F φ20mm 30F φ30mm | 201F φ20mm 301F φ30mm | |
回轉速度變換 Number of spindle speed ranges | 無級 Stepless | 無級 Stepless | |
彈簧夾頭柄徑 Spring collet shank | 20F φ26mm 30F φ36mm | 201F φ26mm 301F φ36mm | |
進給 Axes | 導軌形式 Guideway construction | 直線導軌 Linear rail | 硬軌 Hard rail |
X軸快移速度 X-axis rapid traverse | 20m/min | 15m/min | |
Z軸快移速度 Z-axis rapid traverse | 20m/min | 15m/min | |
移動量 Travelof tool slide | X軸移動量mm X-axis travel | 200/250/300(選配) 200/250/300(Optiinal) | 250 |
Z軸移動量mm Z-axis travel | 180/220 | 180 | |
電機 Motor | 主軸電機 F Spindle drive motor FA/FC | 3.7kW 3.7/5.5kW | 3.7kW 3.7/5.5kW |
進給電機 Feed motor | 0.75KW(FANUC) 1KW(SYNTEC) | 0.75KW(FANUC) 1KW(SYNTEC) | |
其它 Others | 總電氣容量 Required electric power | 6kVA | 6kVA |
機床尺寸(長×寬×高) Floor Space | 1240×1360×1580mm | 1240×1360×1580mm | |
主軸中心高度 Height from floor to spindle center | 985mm | 985mm | |
機床重量 Mass of machine | 約1100KG About 1100KG | 約1100KG About 1100KG | |
