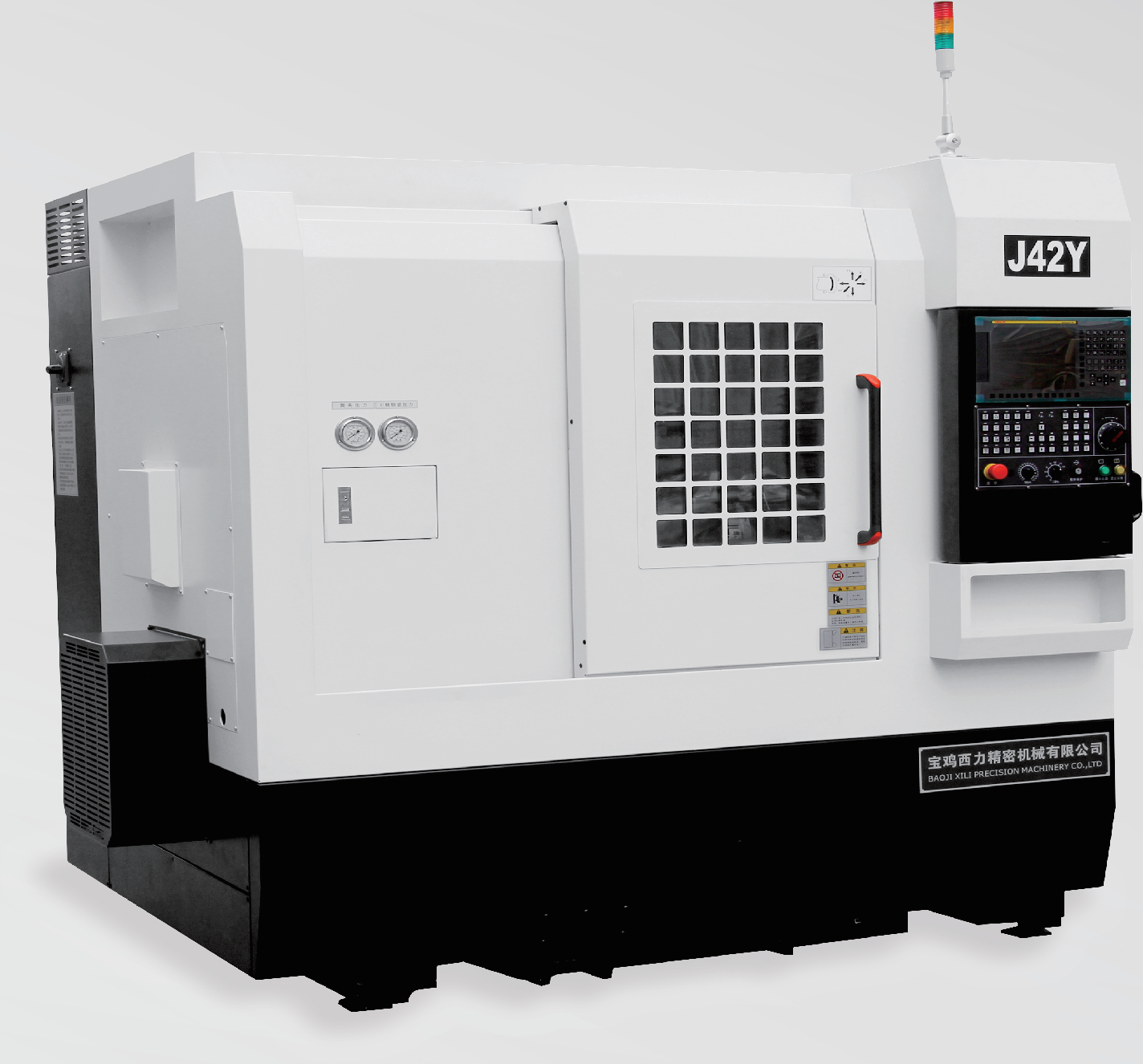

J42Y
TURNING AND MILLING CENTER
High Precision, High Speed, High Stability
This machine tool adopts the form of a mechanical spindle. And after accurate dynamic balance correction, has good rotation accuracy and stability, strong vibration resistance. The standard configuration of C axis, the separation accuracy reaches 0.001, the spindle adopts high speed angular contact ball bearing +cylindrical roller bearing structure, with good rigidity and speedup to 5000 r/min.
Machine Host: High Rigidity, High Anti Vibration Structure
J42Y milling center adopts integral 30 inclined bed body structure, flat bed saddle, integral column, all adopt high quality cast iron, through the optimized structure design and process method, the machine tool has excellent rigidity, vibration resistance and precision.
Tools: Sixteen tool positions, accurate positioning
The J42Y turning and milling center adopts an eight station cutterhead, four + four power heads, with a total of 16 cutting positions for turning, milling, drilling, and boring, which can be expanded to a maximum of 20 cutting positions, meeting the processing needs of most parts in the market. One clamping can complete all turning, milling, drilling, and boring processes of parts except for flipping, greatly improving processing efficiency and part quality.
Optional configuration
★5-inch/6-inch chuck automatic unloading device
★Parts conveyer
★Special configuration that meets user needs
MACHINE SPECIFICATION PARAMETERS
項目ITEM | J42Y | J42AY | |
加工能力 Capacity | 最大的回轉直徑 Max. swing diaover bed | φ400mm | φ400mm |
最大加工直徑 Max process diameter | φ200mm | φ200mm | |
最大加工長度 Max process length | 200mm | 200mm | |
主軸通孔直徑 Spindle through hole diamete | φ45mm | φ45mm | |
主軸 Spindle | 主軸最高轉速 Max spindle speed | 5000rpm/min | 5000rpm/min |
工件夾持方式 Clamp type | CL-42A5 | CL-42A5 | |
主軸端部形式 Spindle nose type | A2-5 | A2-5 | |
快移速度 Rapid feed | X/Y/Z軸快進速度 X/Y/Z Axis traverse | 20/15/20m/min | 20/15/20m/min |
X/Y/Z軸行程 X/Y/Z Axis travel | 350/200/400mm | 450/260/400mm | |
刀具配置 Tool configuration | 配置形式 Configuration form | 車銑鉆鏜 Turning, milling, driling, and boring | |
配置數量 Configuration quantity | 側銑頭4+4,8工位臥式刀塔 Side milling head 4+4,8-station horizontal turret | ||
刀方規格 Tool size | 20x20 | 20x20 | |
夾持規格 Clamping specifications | ER20 | ER25 | |
鏜銑刀規格 Boring andmiing tool specfications | φ13mm | φ16mm | |
刀具驅動功率 Tool driving power | FANUC 1.3KW SYNTEC 1.2KW | 雙電機 Dual motor 1.2/1.2KW | |
刀具最大轉速 Maximum tool speed | 3000r/min | 3000r/min | |
電機 Motor | 主軸電機 Spindle motor | 5.5/7.5KW | 7.5/11KW |
進給電機 Feed motor X/Y/Z | FANUC 1.8/0.75/1.2KW SYNTEC 1.3/0.85/1.3KW | 1.8/1.2/1.8KW | |
其它 Others | 冷卻馬達 Cooling motor | 550W | 550W |
電源容量 Power capacity | 15KVA | 15KVA | |
機床尺寸(長×寬×高) Floor Space | 2200×1820×2075mm | 2380*1930*2165mm | |
主軸中心高度 Spindle center height | 1185mm | 1250mm | |
機床重量 Mass of machine | 約3200kg about 3200kg | 約3500kg about 3500kg | |
